Part Number: 6XYJN / Vendor ID #: 776

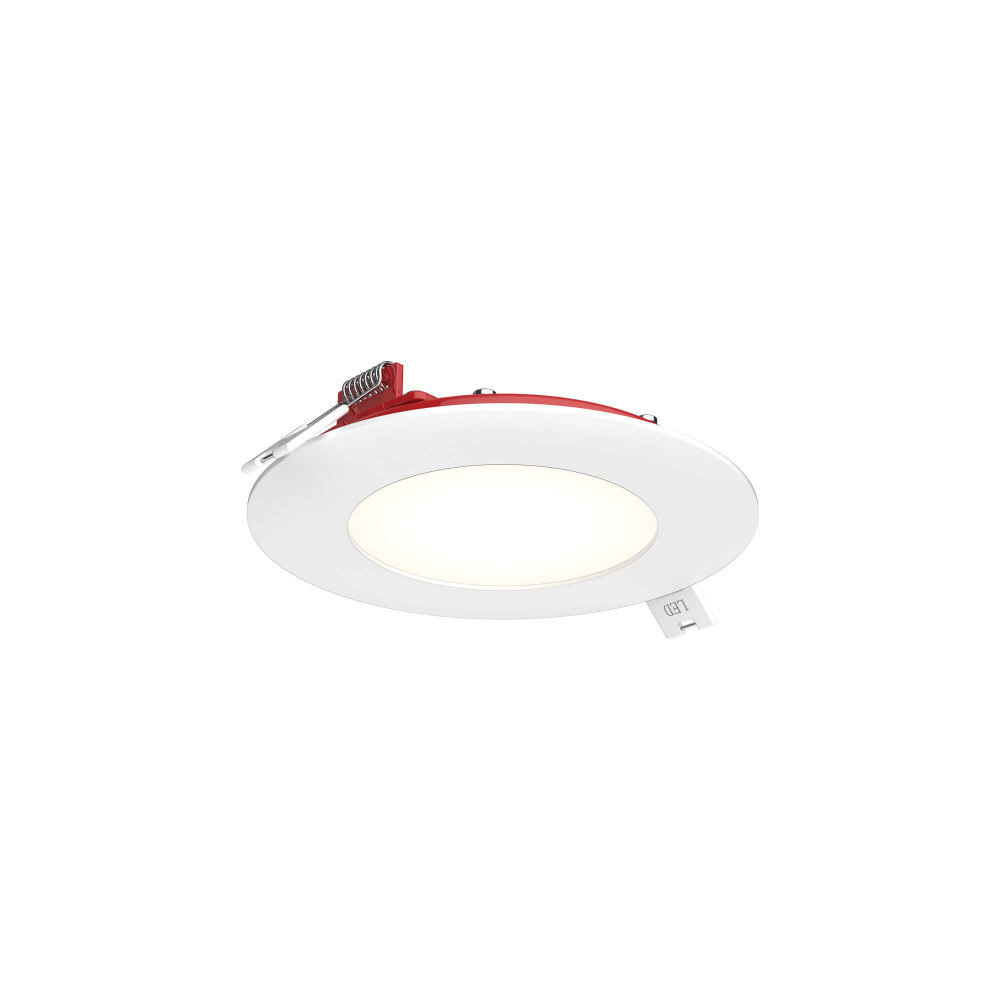

Multi CCT Slim Round Recessed 2 Hour Fire Rated
$66.78
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unavailable.
Dimensions
Height: 1.13"
Width: 5.06"
Length: 5.06"
Info & Guides
Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Title 24
Outdoor
Wet Rated
Prop 65
Category:
Recessed
Subcategory:
Slim Panel
Finish:
White
Option:
Outdoor
Prop 65
Title 24
Family:
Excel
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700/3000/3500/4000/5000
Material:
Aluminum
Ship Carton Height:
3
Ship Carton Length:
6
Ship Carton Width:
5.25
Ship Weight:
1.1
Warranty:
5 Years Limited
Weight:
1
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
110
Bulb CRI:
80
Country of Origin:
China
Delivered Lumens:
825
Dimmer Type:
Triac / ELV
Energy Star:
No
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
Lens Material:
Plastic
Location Rating:
Wet Rated
Max Wattage:
11 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Prop 65:
View
Safety Rating:
ETL Approved
Shipping Master Height:
11
Shipping Master Length:
16
Shipping Master Quantity:
20
Shipping Master Weight:
18
Shipping Master Width:
12.5
Title 24:
Yes
Wiring:
Hardwired
2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
Every fixture includes a junction box with an integrated driver
IC certification (suitable for direct contact with insulation)
Over 35,000 hours of service life
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
